Shapes

Almost 200 shape types can be added to Slides (see ShapeType enum).

Usage

// Shapes without text
slide.addShape(pres.ShapeType.rect, { fill: { color: "FF0000" } });
slide.addShape(pres.ShapeType.ellipse, {
  fill: { type: "solid", color: "0088CC" },
});
slide.addShape(pres.ShapeType.line, { line: { color: "FF0000", width: 1 } });

// Shapes with text
slide.addText("ShapeType.rect", {
  shape: pres.ShapeType.rect,
  fill: { color: "FF0000" },
});
slide.addText("ShapeType.ellipse", {
  shape: pres.ShapeType.ellipse,
  fill: { color: "FF0000" },
});
slide.addText("ShapeType.line", {
  shape: pres.ShapeType.line,
  line: { color: "FF0000", width: 1, dashType: "lgDash" },
});

Properties

Position/Size Props (`PositionProps`)

Name	Type	Default	Description	Possible Values
`x`	number	`1.0`	hor location (inches)	0-n
`x`	string		hor location (percent)	'n%'. (Ex: `{x:'50%'}` middle of the Slide)
`y`	number	`1.0`	ver location (inches)	0-n
`y`	string		ver location (percent)	'n%'. (Ex: `{y:'50%'}` middle of the Slide)
`w`	number	`1.0`	width (inches)	0-n
`w`	string		width (percent)	'n%'. (Ex: `{w:'50%'}` 50% the Slide width)
`h`	number	`1.0`	height (inches)	0-n
`h`	string		height (percent)	'n%'. (Ex: `{h:'50%'}` 50% the Slide height)

Shape Props (`ShapeProps`)

Name	Type	Description	Possible Values
`align`	string	alignment	`left` or `center` or `right`. Default: `left`
`fill`	`ShapeFillProps`	fill props	Fill color/transparency props
`flipH`	boolean	flip Horizontal	`true` or `false`
`flipV`	boolean	flip Vertical	`true` or `false`
`hyperlink`	`HyperlinkProps`	hyperlink props	(see type link)
`line`	`ShapeLineProps`	border line props	(see type link)
`rectRadius`	number	rounding radius	0 to 1. (Ex: 0.5. Only for `pptx.shapes.ROUNDED_RECTANGLE`)
`rotate`	number	rotation (degrees)	-360 to 360. Default: `0`
`shadow`	`ShadowProps`	shadow props	(see type link)
`shapeName`	string	optional shape name	Ex: "Customer Network Diagram 99"

Examples

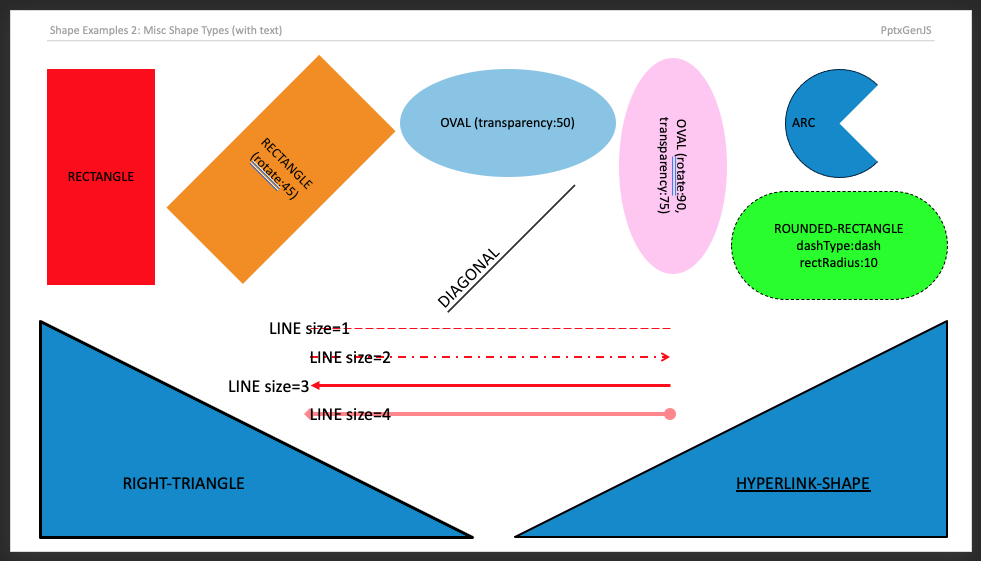

Shapes with Text Demo
