Charts

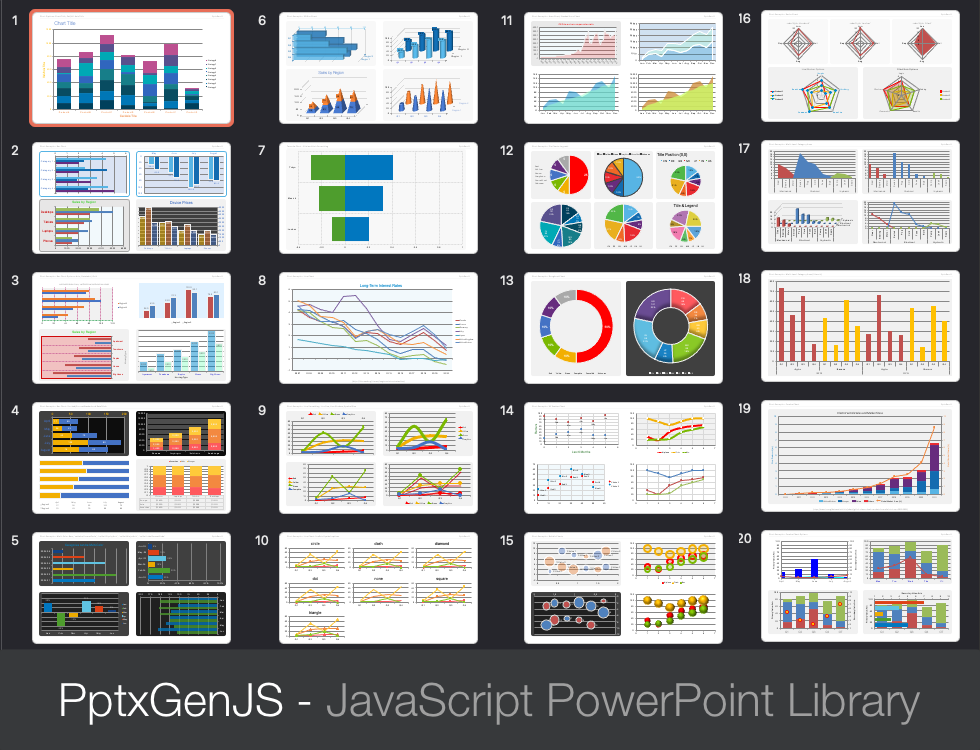

Charts of most types can be added to Slides, including combo and 3D charts.

pptxgenjs Chart Samples

Usage

let pres = new pptxgen();
let dataChartAreaLine = [
  {
    name: "Actual Sales",
    labels: ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"],
    values: [1500, 4600, 5156, 3167, 8510, 8009, 6006, 7855, 12102, 12789, 10123, 15121],
  },
  {
    name: "Projected Sales",
    labels: ["Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"],
    values: [1000, 2600, 3456, 4567, 5010, 6009, 7006, 8855, 9102, 10789, 11123, 12121],
  },
];

slide.addChart(pres.ChartType.line, dataChartAreaLine, { x: 1, y: 1, w: 8, h: 4 });

Core Chart Types

Chart type can be any one of pptx.ChartType
Currently: pptx.ChartType.area, pptx.ChartType.bar, pptx.ChartType.bar3d, pptx.ChartType.bubble, pptx.ChartType.bubble3d, pptx.ChartType.doughnut, pptx.ChartType.line, pptx.ChartType.pie, pptx.ChartType.radar, pptx.ChartType.scatter

Combo Charts

Chart types can be any one of pptx.ChartType, although pptx.ChartType.area, pptx.ChartType.bar, and pptx.ChartType.line will give the best results.
There should be at least two chart-types. There should always be two value axes and category axes.
Combo charts have a different function signature than standard. There are two parameters:
- chartTypes: Array of objects, each with type, data, and options objects.
- options: Standard options as used with single charts. Can include axes options.
Column charts are the most suitable choice in general. Line charts cannot be rotated to match up with horizontal bars (a PowerPoint limitation).
Can optionally have a secondary value axis.
If there is secondary value axis, a secondary category axis is required in order to render, but currently always uses the primary labels. It is recommended to use catAxisHidden: true on the secondary category axis.
Standard options are used, and the chart-type-options are mixed in to each.

Usage Notes

Zero values can be hidden using Microsoft formatting specs (see Issue #288)
Use *LabelFormatCode props to format numbers - see Microsoft Number Format Codes

Properties

Position/Size Props (`PositionProps`)

Option	Type	Default	Description	Possible Values
`x`	number	`1.0`	hor location (inches)	0-n
`x`	string		hor location (percent)	'n%'. (Ex: `{x:'50%'}` middle of the Slide)
`y`	number	`1.0`	ver location (inches)	0-n
`y`	string		ver location (percent)	'n%'. (Ex: `{y:'50%'}` middle of the Slide)
`w`	number	`1.0`	width (inches)	0-n
`w`	string		width (percent)	'n%'. (Ex: `{w:'50%'}` 50% the Slide width)
`h`	number	`1.0`	height (inches)	0-n
`h`	string		height (percent)	'n%'. (Ex: `{h:'50%'}` 50% the Slide height)

General (`IChartOpts`), Data Table (`IChartPropsDataTable`), Legend (`IChartPropsLegend`), Title (`IChartPropsTitle`)

Option	Type	Default	Description	Possible Values
`altText`	string		chart alt text	string shown in the "alt text" panel in PowerPoint
`chartArea`	object		chart area fill/border	fill and/or border. Ex: `{ fill: { color:"0088CC" }, border: {pt:'1', color:'f1f1f1'}, roundedCorners:true }`
`chartColors`	array		data colors	array of hex color codes. Ex: `['0088CC','FFCC00']`
`chartColorsOpacity`	number	`100`	data color opacity (percent)	1-100. Ex: `{ chartColorsOpacity:50 }`
`dataTableFontSize`	number		data table font size	1-256. Ex: `{ dataTableFontSize: 13 }`
`holeSize`	number	`50`	doughnut hole size (percent)	1-100. Ex: `{ holeSize:50 }`
`invertedColors`	array		data colors for negative numbers	array of hex color codes. Ex: `['0088CC','FFCC00']`
`legendFontFace`	string	`Arial`	font face	font name. Ex: `{ legendFontFace:'Arial' }`
`legendFontSize`	number	`10`	legend font size	1-256. Ex: `{ legendFontSize: 13 }`
`legendColor`	string	`000000`	legend text color	hex color code. Ex: `{ legendColor: '0088CC' }`
`legendPos`	string	`r`	chart legend position	`b` (bottom), `tr` (top-right), `l` (left), `r` (right), `t` (top)
`layout`	object		positioning plot within chart area	object with `x`, `y`, `w` and `h` props, all in range 0-1 (proportionally related to the chart size). Ex: `{x: 0, y: 0, w: 1, h: 1}` fully expands chart within the plot area
`plotArea`	object		plot area fill/border	fill and/or border. Ex: `{ fill: { color: "0088CC" }, border: {pt:'1', color:'f1f1f1'} }`
`radarStyle`	string	`standard`	radar chart style	`standard`, `marker`, `filled`
`showDataTable`	boolean	`false`	show Data Table under the chart	`true` or `false` (Not available for Pie/Doughnut charts)
`showDataTableKeys`	boolean	`true`	show Data Table Keys (color blocks)	`true` or `false` (Not available for Pie/Doughnut charts)
`showDataTableHorzBorder`	boolean	`true`	show Data Table horizontal borders	`true` or `false` (Not available for Pie/Doughnut charts)
`showDataTableVertBorder`	boolean	`true`	show Data Table vertical borders	`true` or `false` (Not available for Pie/Doughnut charts)
`showDataTableOutline`	boolean	`true`	show Data Table table outline	`true` or `false` (Not available for Pie/Doughnut charts)
`showLabel`	boolean	`false`	show data labels	`true` or `false`
`showLeaderLines`	boolean	`false`	show leader lines	`true` or `false`
`showLegend`	boolean	`false`	show chart legend	`true` or `false`
`showPercent`	boolean	`false`	show data percent	`true` or `false`
`showTitle`	boolean	`false`	show chart title	`true` or `false`
`showValue`	boolean	`false`	show data values	`true` or `false`
`title`	string		chart title	Ex: `{ title:'Sales by Region' }`
`titleAlign`	string	`center`	chart title text align	`left` `center` or `right` Ex: `{ titleAlign:'left' }`
`titleColor`	string	`000000`	title color	hex color code. Ex: `{ titleColor:'0088CC' }`
`titleFontFace`	string	`Arial`	font face	font name. Ex: `{ titleFontFace:'Arial' }`
`titleFontSize`	number	`18`	font size	1-256. Ex: `{ titleFontSize:12 }`
`titleItalic`	boolean	`false`	italic chart title	`true` or `false`
`titlePos`	object		title position	object with x and y values. Ex: `{ titlePos:{x: 0, y: 10} }`
`titleRotate`	integer		title rotation (degrees)	0-359. Ex: `{ titleRotate:45 }`

Cat Axis (`IChartPropsAxisCat`) and Val Axis (`IChartPropsAxisVal`)

Option	Type	Default	Description	Possible Values
`catAxisBaseTimeUnit`	string		category-axis base time unit	`days` `months` or `years`
`catAxisCrossesAt`	multi		category-axis crosses at	`number` or `autoZero`
`catAxisHidden`	boolean	`false`	hide category-axis	`true` or `false`
`catAxisLabelColor`	string	`000000`	category-axis color	hex color code. Ex: `{ catAxisLabelColor:'0088CC' }`
`catAxisLabelFontBold`	boolean	`false`	make cat axis label bold	`true` or `false`
`catAxisLabelFontFace`	string	`Arial`	category-axis font face	font name. Ex: `{ titleFontFace:'Arial' }`
`catAxisLabelFontSize`	integer	`18`	category-axis font size	1-256. Ex: `{ titleFontSize:12 }`
`catAxisLabelFrequency`	integer		PPT "Interval Between Labels"	1-n. Ex: `{ catAxisLabelFrequency: 2 }`
`catAxisLabelPos`	string	`nextTo`	category-axis label position	`low`, `high`, or `nextTo` . Ex: `{ catAxisLabelPos: 'low' }`
`catAxisLabelRotate`	integer		category-axis rotation (degrees)	0-360. Ex: `{ catAxisLabelRotate:45 }`
`catAxisLineColor`	string	`000000`	category-axis line color	hex color code. Ex: `{ catAxisTitleColor:'0088CC' }`
`catAxisLineShow`	boolean	`true`	show/hide category-axis line	`true` or `false`
`catAxisLineSize`	integer	`18`	category-axis font size	1-256. Ex: `{ titleFontSize:12 }`
`catAxisLineStyle`	string	`solid`	category-axis line style	`solid`, `dash`, `dot`
`catAxisMajorTickMark`	string		category-axis major tick mark	`none`, `inside`, `outside`, `cross`
`catAxisMajorTimeUnit`	string		category-axis major time unit	`days`, `months` or `years`
`catAxisMaxVal`	integer		category-axis max value	Integer. Ex: `{ catAxisMaxVal:10 }`
`catAxisMinVal`	integer		category-axis min value	Integer. Ex: `{ catAxisMinVal:0 }`
`catAxisMinorTickMark`	string		category-axis minor tick mark	`none`, `inside`, `outside`, `cross`
`catAxisMinorTimeUnit`	string		category-axis minor time unit	`days`, `months` or `years`
`catAxisMajorUnit`	integer		category-axis major unit	Positive integer. Ex: `{ catAxisMajorUnit:12 }`
`catAxisMinorUnit`	integer		category-axis minor unit	Positive integer. Ex: `{ catAxisMinorUnit:1 }`
`catAxisMultiLevelLabels`	boolean	`false`	show multi-level labels	`true` or `false`. Ex:`{ catAxisMultiLevelLabels:true }`
`catAxisOrientation`	string	`minMax`	category-axis orientation	`maxMin` (high->low) or `minMax` (low->high)
`catAxisTitle`	string	`Axis Title`	axis title	a string. Ex: `{ catAxisTitle:'Regions' }`
`catAxisTitleColor`	string	`000000`	title color	hex color code. Ex: `{ catAxisTitleColor:'0088CC' }`
`catAxisTitleFontFace`	string	`Arial`	font face	font name. Ex: `{ catAxisTitleFontFace:'Arial' }`
`catAxisTitleFontSize`	integer		font size	1-256. Ex: `{ catAxisTitleFontSize:12 }`
`catAxisTitleRotate`	integer		title rotation (degrees)	0-360. Ex: `{ catAxisTitleRotate:45 }`
`catGridLine`	object	`none`	category grid line style	object with properties `size` (pt), `color` and `style` (`'solid'`, `'dash'` or `'dot'`) or `'none'` to hide
`showCatAxisTitle`	boolean	`false`	show category (vert) title	`true` or `false`. Ex:`{ showCatAxisTitle:true }`
`showSerName`	boolean	`false`	show serie name	`true` or `false`. Ex:`{ showSerName:true }`
`showValAxisTitle`	boolean	`false`	show values (horiz) title	`true` or `false`. Ex:`{ showValAxisTitle:true }`
`valAxisCrossesAt`	multi		value-axis crosses at	`number` or `autoZero`
`valAxisDisplayUnit`	string		display units	`billions`, `hundredMillions`, `hundreds`, `hundredThousands`, `millions`, `tenMillions`, `tenThousands`, `thousands`, `trillions`
`valAxisHidden`	boolean	`false`	hide value-axis	`true` or `false`
`valAxisLabelColor`	string	`000000`	value-axis color	hex color code. Ex: `{ valAxisLabelColor:'0088CC' }`
`valAxisLabelFontBold`	boolean	`false`	make val axis label bold	`true` or `false`
`valAxisLabelFontFace`	string	`Arial`	value-axis font face	font name. Ex: `{ titleFontFace:'Arial' }`
`valAxisLabelFontSize`	integer	`18`	value-axis font size	1-256. Ex: `{ titleFontSize:12 }`
`valAxisLabelFormatCode`	string	`General`	value-axis number format	format string. Ex: `{ axisLabelFormatCode:'#,##0' }`
`valAxisLineColor`	string	`000000`	value-axis line color	hex color code. Ex: `{ catAxisTitleColor:'0088CC' }`
`valAxisLineShow`	boolean	`true`	show/hide value-axis line	`true` or `false`
`valAxisLineSize`	integer	`18`	value-axis font size	1-256. Ex: `{ titleFontSize:12 }`
`valAxisLineStyle`	string	`solid`	value-axis line style	`solid`, `dash`, `dot`
`valAxisLogScaleBase`	number		logarithmic scale	2-99
`valAxisMajorTickMark`	string		value-axis major tick mark	`none`, `inside`, `outside`, `cross`
`valAxisMajorUnit`	number	`1.0`	value-axis tick steps	Float or whole number. Ex: `{ majorUnit:0.2 }`
`valAxisMaxVal`	number		value-axis maximum value	1-N. Ex: `{ valAxisMaxVal:125 }`
`valAxisMinVal`	number		value-axis minimum value	1-N. Ex: `{ valAxisMinVal: -10 }`
`valAxisMinorTickMark`	string		value-axis minor tick mark	`none`, `inside`, `outside`, `cross`
`valAxisOrientation`	string	`minMax`	value-axis orientation	`maxMin` (high->low) or `minMax` (low->high)
`valAxisTitle`	string	`Axis Title`	axis title	a string. Ex: `{ valAxisTitle:'Sales (USD)' }`
`valAxisTitleColor`	string	`000000`	title color	hex color code. Ex: `{ valAxisTitleColor:'0088CC' }`
`valAxisTitleFontFace`	string	`Arial`	font face	font name. Ex: `{ valAxisTitleFontFace:'Arial' }`
`valAxisTitleFontSize`	number		font size	1-256. Ex: `{ valAxisTitleFontSize:12 }`
`valAxisTitleRotate`	integer		title rotation (degrees)	0-360. Ex: `{ valAxisTitleRotate:45 }`
`valGridLine`	object		value grid line style	object with properties `size` (pt), `color` and `style` (`'solid'`, `'dash'` or `'dot'`) or `'none'` to hide

Bar (`IChartPropsChartBar`), Data Label (`IChartPropsDataLabel`), Line (`IChartPropsChartLine`)

Option	Type	Default	Description	Possible Values
`barDir`	string	`col`	bar direction	(Bar Chart) `bar` (horizontal) or `col` (vertical). Ex: `{barDir:'bar'}`
`barGapWidthPct`	number	`150`	width between bar groups (percent)	(Bar Chart) 0-500. Ex: `{ barGapWidthPct:50 }`
`barGrouping`	string	`clustered`	bar grouping	(Bar Chart) `clustered` or `stacked` or `percentStacked`.
`barOverlapPct`	number	`0`	overlap (percent)	(Bar Chart) `-100`-`100`. Ex: `{ barOverlapPct:50 }`
`catLabelFormatCode`	string		format to show data value	format string. Ex: `{ catLabelFormatCode:'#,##0' }`
`dataBorder`	object		data border	object with `pt` and `color` values. Ex: `border:{pt:'1', color:'f1f1f1'}`
`dataLabelColor`	string	`000000`	data label color	hex color code. Ex: `{ dataLabelColor:'0088CC' }`
`dataLabelFormatCode`	string		format to show data value	format string. Ex: `{ dataLabelFormatCode:'#,##0' }`
`dataLabelFormatScatter`	string	`custom`	label format	(Scatter Chart) `custom`,`customXY`,`XY`
`dataLabelFontBold`	boolean	`false`	make data label bold	Ex: `{ dataLabelFontBold:true }`
`dataLabelFontFace`	string	`Arial`	value-axis font face	font name. Ex: `{ titleFontFace:'Arial' }`
`dataLabelFontSize`	number	`18`	value-axis font size	1-256. Ex: `{ titleFontSize:12 }`
`dataLabelPosition`	string	`bestFit`	data label position	`bestFit`,`b`,`ctr`,`inBase`,`inEnd`,`l`,`outEnd`,`r`,`t`
`dataNoEffects`	boolean	`false`	whether to omit effects on data	(Doughnut/Pie Charts) `true` or `false`
`displayBlanksAs`	string	`span`	whether to draw line or gap	(Line Charts) `span` or `gap`
`lineCap`	string		line cap style	`flat`, `round`, `square`
`lineDash`	string	`solid`	(Bar/Scatter Chart) border line dash style	`dash`, `dashDot`, `lgDash`, `lgDashDot`, `lgDashDotDot`, `solid`, `sysDash` or `sysDot`
`lineDataSymbol`	string	`circle`	symbol used on line marker	`circle`,`dash`,`diamond`,`dot`,`none`,`square`,`triangle`
`lineDataSymbolSize`	number	`6`	size of line data symbol	1-256. Ex: `{ lineDataSymbolSize:12 }`
`lineDataSymbolLineSize`	number	`0.75`	size of data symbol outline	1-256. Ex: `{ lineDataSymbolLineSize:12 }`
`lineDataSymbolLineColor`	string	`000000`	color of data symbol line	hex color code. Ex: `{ lineDataSymbolLineColor:'0088CC' }`
`lineSize`	number	`2`	thickness of data line (0 is no line)	0-256. Ex: `{ lineSize: 1 }`
`lineSmooth`	boolean	`false`	whether to smooth lines	`true` or `false` - Ex: `{ lineSmooth: true }`
`shadow`	ShadowProps		data element shadow options	`none` or `ShadowProps`

3D Bar Chart (`IChartPropsChartBar`), Series Axis (`IChartPropsDataTable`)

Option	Type	Default	Description	Possible Values
`bar3DShape`	string	`box`	bar 3d shape	`box`, `cylinder`, `coneToMax`, `pyramid`, `pyramidToMax`
`barGapDepthPct`	number	`150`	width between bar groups (percent)	0-500. Ex: `{ barGapWidthPct:50 }`
`dataLabelBkgrdColors`	boolean	`false`	bkgd color is series color	`true` or `false`
`serAxisBaseTimeUnit`	string		series-axis base time unit	`days` `months` or `years`
`serAxisHidden`	boolean	`false`	hide series-axis	`true` or `false`
`serAxisOrientation`	string	`minMax`	series-axis orientation	`maxMin` (high->low) or `minMax` (low->high)
`serAxisLabelColor`	string	`000000`	series-axis color	hex color code. Ex: `{ serAxisLabelColor:'0088CC' }`
`serAxisLabelFontBold`	boolean	`false`	make cat axis label bold	`true` or `false`
`serAxisLabelFontFace`	string	`Arial`	series-axis font face	font name. Ex: `{ titleFontFace:'Arial' }`
`serAxisLabelFontSize`	integer	`18`	series-axis font size	1-256. Ex: `{ titleFontSize:12 }`
`serAxisLabelFrequency`	integer		PPT "Interval Between Labels"	1-n. Ex: `{ serAxisLabelFrequency: 2 }`
`serAxisLabelPos`	string	`nextTo`	axis label position	`low`, `high`, or `nextTo` . Ex: `{ serAxisLabelPos: 'low' }`
`serAxisLineShow`	boolean	`true`	show/hide series-axis line	`true` or `false`
`serAxisMajorTimeUnit`	string		series-axis major time unit	`days`, `months` or `years`
`serAxisMajorUnit`	integer		series-axis major unit	Positive integer. Ex: `{ serAxisMajorUnit:12 }`
`serAxisMinorTimeUnit`	string		series-axis minor time unit	`days`, `months` or `years`
`serAxisMinorUnit`	integer		series-axis minor unit	Positive integer. Ex: `{ serAxisMinorUnit:1 }`
`serAxisTitle`	string	`Axis Title`	axis title	a string. Ex: `{ serAxisTitle:'Regions' }`
`serAxisTitleColor`	string	`000000`	title color	hex color code. Ex: `{ serAxisTitleColor:'0088CC' }`
`serAxisTitleFontFace`	string	`Arial`	font face	font name. Ex: `{ serAxisTitleFontFace:'Arial' }`
`serAxisTitleFontSize`	integer		font size	1-256. Ex: `{ serAxisTitleFontSize:12 }`
`serAxisTitleRotate`	integer		title rotation (degrees)	0-360. Ex: `{ serAxisTitleRotate:45 }`
`serGridLine`	object	`none`	series grid line style	object with properties `size` (pt), `color` and `style` (`'solid'`, `'dash'` or `'dot'`) or `'none'` to hide
`v3DRAngAx`	boolean	`true`	Right angle axes	`true` or `false`
`v3DPerspective`	integer	`18`	series-axis font size	1-240. Ex: `{ v3DPerspective:125 }`
`v3DRotX`	integer		x-axis rotation (degrees)	`-90` - `90`. Ex: `{ v3DRotX:-45 }`
`v3DRotY`	integer		title rotation (degrees)	0-360. Ex: `{ v3DRotY:180 }`
`valueBarColors`	boolean	`false`	forces chartColors on multi-data-series	`true` or `false`

Element Shadows

Option	Type	Unit	Default	Description	Possible Values
`type`	string		`outer`	shadow type	`outer` or `inner`. Ex: `{ type:'outer' }`
`angle`	number	degrees	`90`	shadow angle	0-359. Ex: `{ angle:90 }`
`blur`	number	points	`3`	blur size	1-256. Ex: `{ blur:3 }`
`color`	string		`000000`	shadow color	hex color code. Ex: `{ color:'0088CC' }`
`offset`	number	points	`1.8`	offset size	1-256. Ex: `{ offset:2 }`
`opacity`	number	percent	`0.35`	opacity	0-1. Ex: `{ opacity:0.35 }`

Combo Chart Options

Option	Type	Default	Description	Possible Values
`catAxes`	array		array of two axis options objects	See example below
`secondaryCatAxis`	boolean	`false`	If data should use secondary category axis (or primary)	`true` or `false`
`secondaryValAxis`	boolean	`false`	If data should use secondary value axis (or primary)	`true` or `false`
`valAxes`	array		array of two axis options objects	See example below

Charts#

#Usage

#Core Chart Types

#Combo Charts

#Usage Notes

#Properties

#Position/Size Props (PositionProps)

#General (IChartOpts), Data Table (IChartPropsDataTable), Legend (IChartPropsLegend), Title (IChartPropsTitle)

#Cat Axis (IChartPropsAxisCat) and Val Axis (IChartPropsAxisVal)

#Bar (IChartPropsChartBar), Data Label (IChartPropsDataLabel), Line (IChartPropsChartLine)

#3D Bar Chart (IChartPropsChartBar), Series Axis (IChartPropsDataTable)

#Element Shadows

#Combo Chart Options

Charts

Usage

Core Chart Types

Combo Charts

Usage Notes

Properties

Position/Size Props (`PositionProps`)

General (`IChartOpts`), Data Table (`IChartPropsDataTable`), Legend (`IChartPropsLegend`), Title (`IChartPropsTitle`)

Cat Axis (`IChartPropsAxisCat`) and Val Axis (`IChartPropsAxisVal`)

Bar (`IChartPropsChartBar`), Data Label (`IChartPropsDataLabel`), Line (`IChartPropsChartLine`)

3D Bar Chart (`IChartPropsChartBar`), Series Axis (`IChartPropsDataTable`)

Element Shadows

Combo Chart Options
